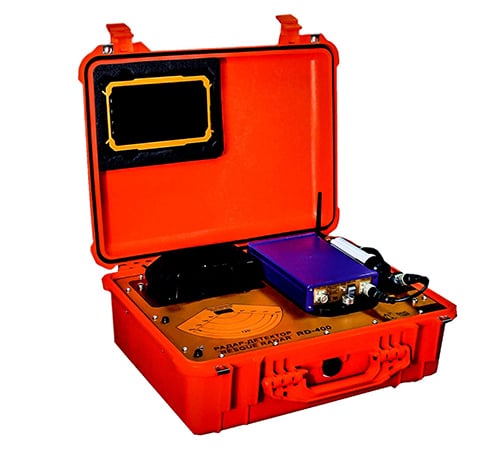

Radar Detector RD-400

To Help Locate Survivors Buried Under Rubble and Debris

  • The RD-400 is a portable radio detection system designed to locate survivors buried under rubble or debris by either movement or breathing.


The RD-400 is based on GPR technology, which allows it to accurately pinpoint the location of a survivor and determine the distance to him or her. It is utilized by emergency teams during search and rescue operations after a catastrophic attack or natural disaster.

The device is very simple to operate. It turns on with a single press of a button, sending GPR signals into the wreckage and quickly detecting any on movement or breathing.

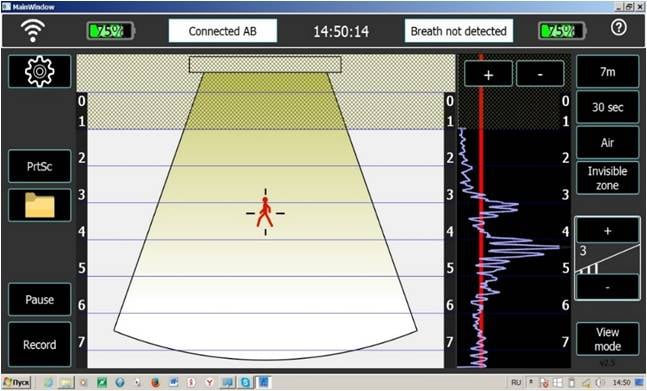

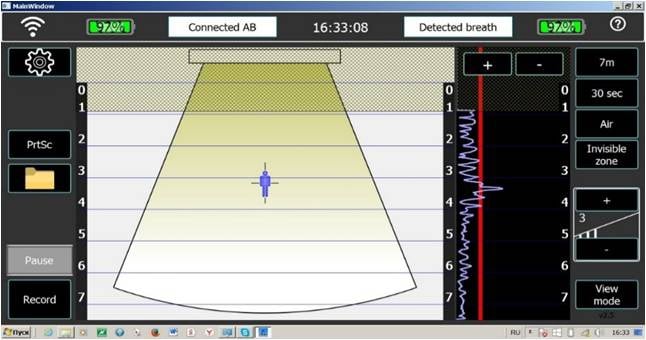

An accompanying Tablet PC displays the distance to the survivor using a red line for movement and a blue line for breathing.

Features

  • Search for survivors of a catastrophic attack or natural disaster by breathing and movement
  • Tablet PC specially designed to endure rough field conditions
  • 18 m detection range by movement
  • 6 m detection range by breathing
  • Portable, rugged, waterproof case
  • Easy-to-use graphical interface
  • Extended battery life
  • Up to 100 m of Wi-Fi range
Radar Detector RD-400 1
Document

Technical Specifications

  • Parameter

  • Value

  • Dimensions

  • 49х20х40 cm

  • Weight

  • 10,5 kg

  • Center frequency

  • 400 MHz

  • Movement Detection

    • Gypsum-cardboard sheet – 18 m
    • Brick wall (30 cm thickness) – 16 m
    • Reinforced concrete wall (40 cm thickness) – 14 m

  • Breathing Detection

  • Gypsum-cardboard sheet – 6 m
    Brick wall (30 cm thickness) - 4 m
    Reinforced concrete wall (40 cm thickness) – 3 m

  • Running time

  • 10 hours

  • Temperature range

  • -20°C to +45°C

  • Cycle time

  • Selectable at 15, 30, 60, 120 seconds

  • Wi-Fi range

  • Up to 100 meters

  • Power supply

  • 12V Ni-MH interchangeable

  • Power Consumption

  • 7W

  • Environment

  • IP65

  • Language

  • English, Russian
