Metexpert

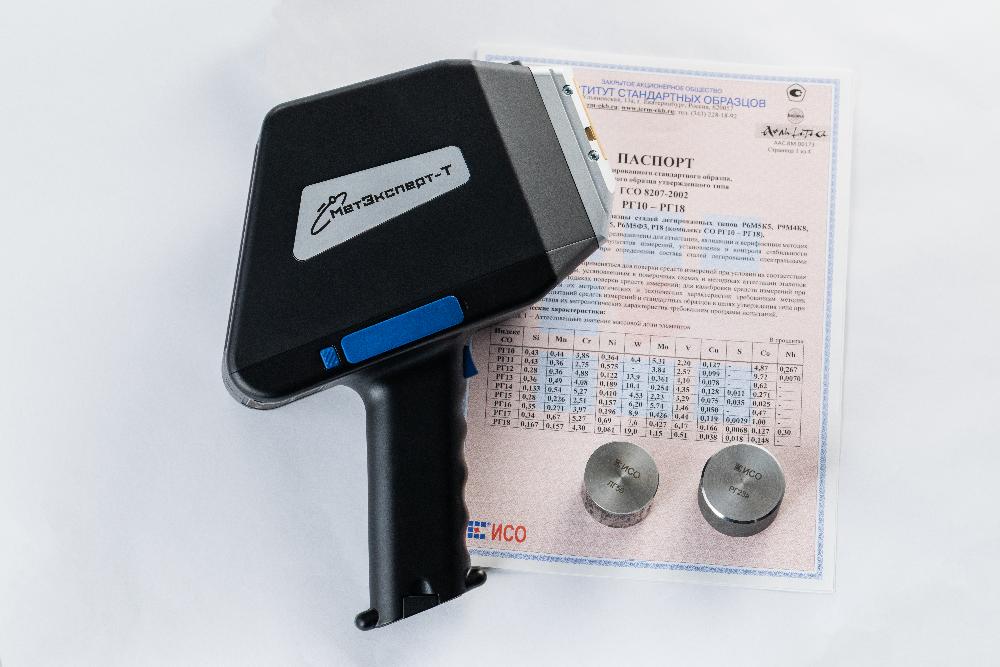

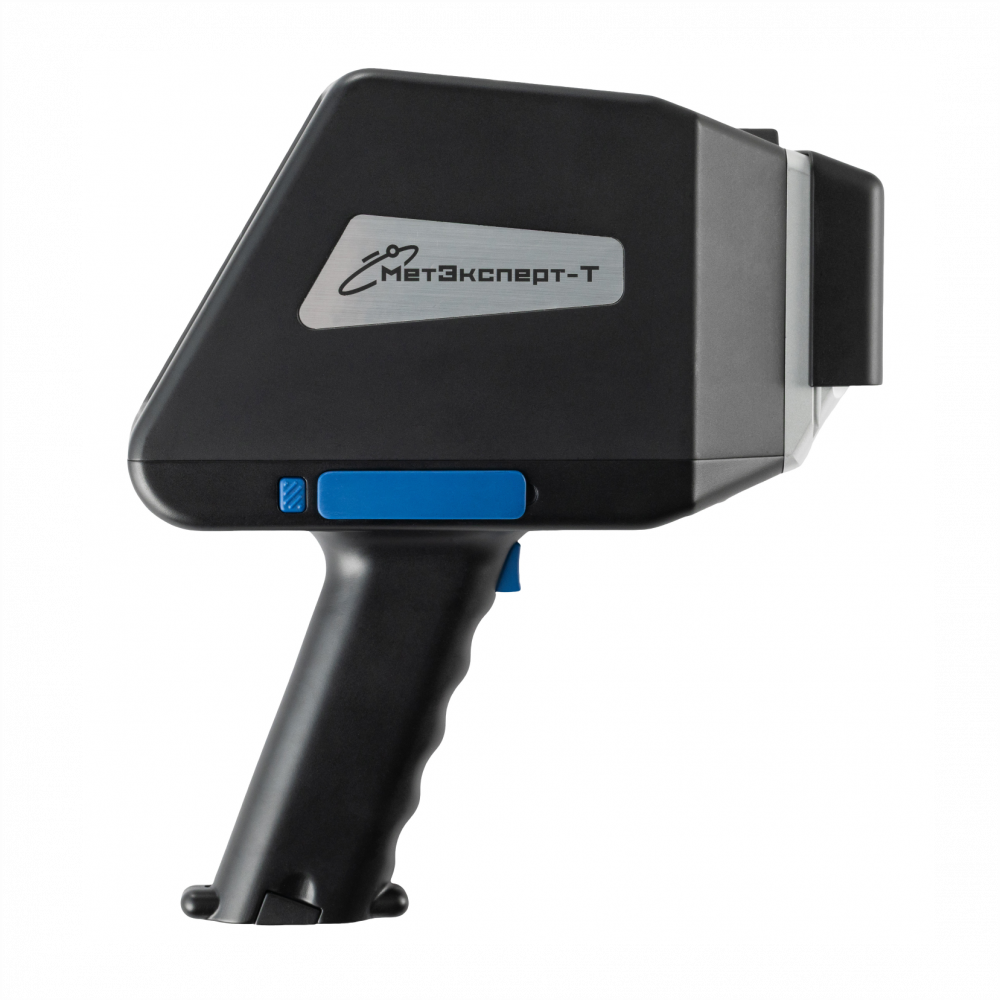

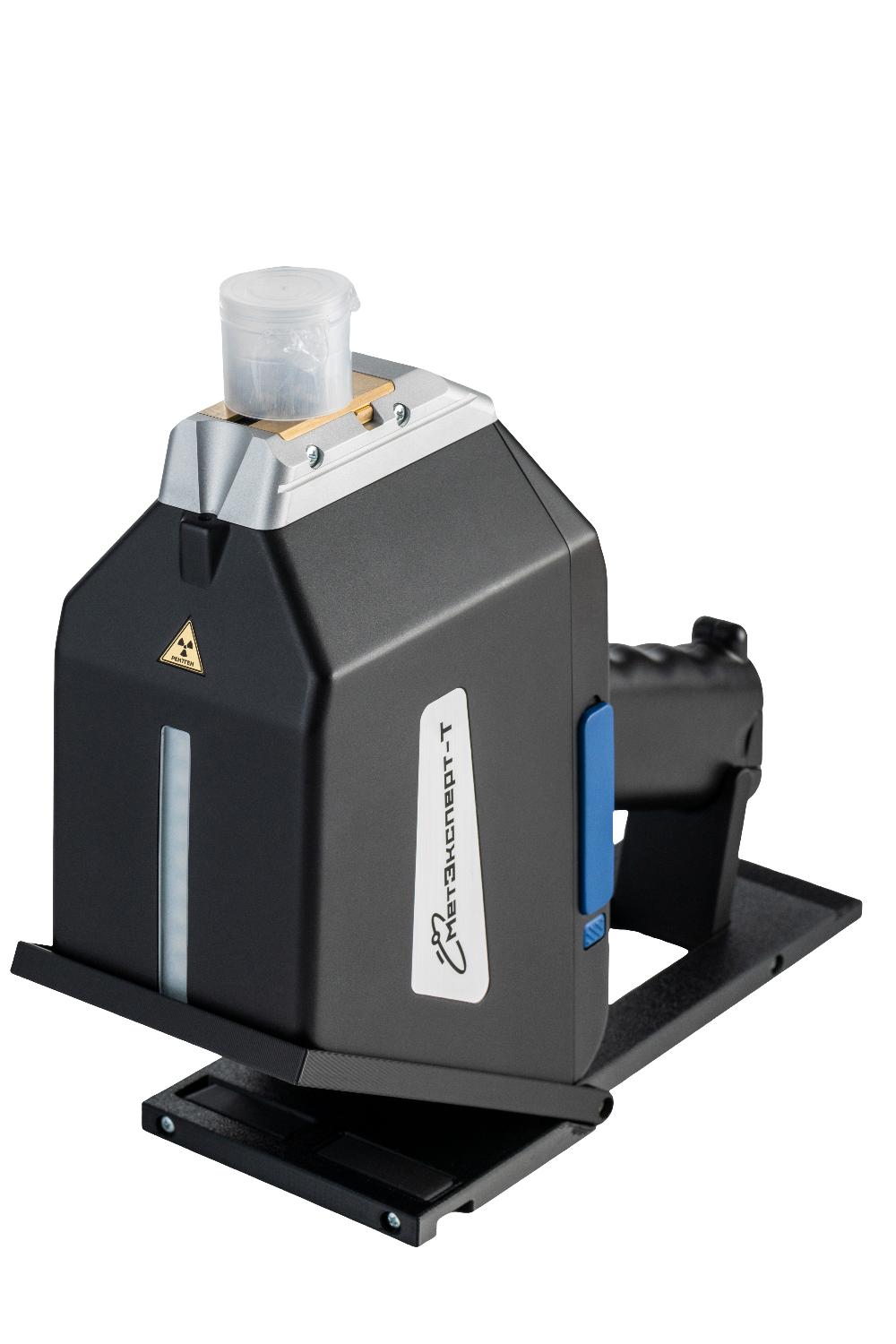

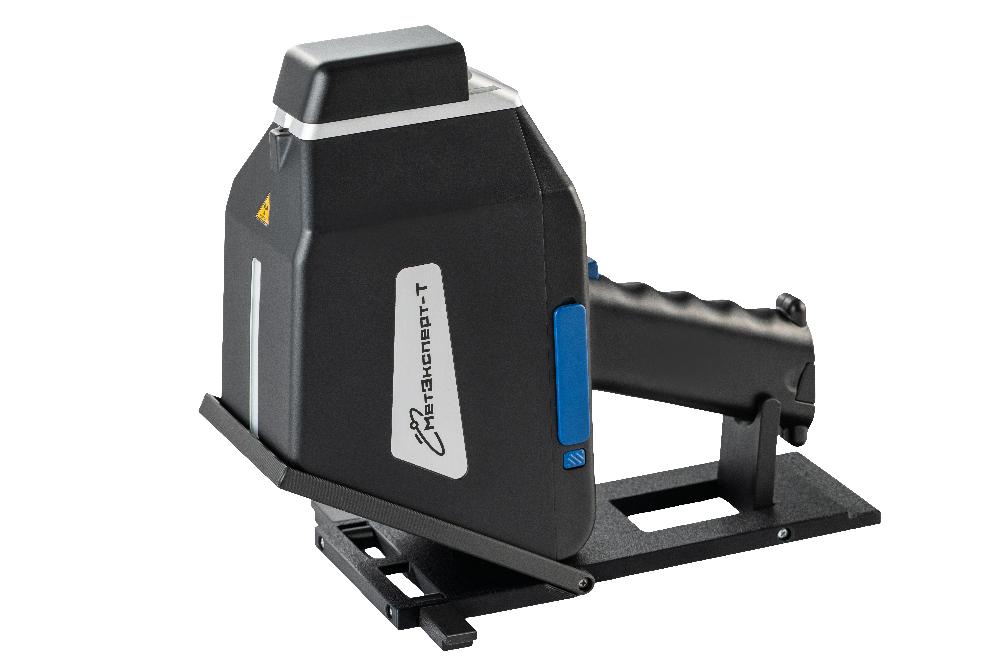

MetExpert-T x-ray fluorescence analyzers are designed to measure the mass fraction of chemical elements in metals and alloys, powders, liquids, oils, ores, soils, water, plastics, jewelry and has the ability to measure the thickness of coating.

It identifies up to 81 chemical elements from sodium Na (Z=11) to curium Cm (Z=96).

Document

ADVANTAGES AND FEATURES:

  • A large modern color LCD display allows you to work with gloves without using a stylus.
  • The updated tapered tip allows you to reach any hard-to-reach places, welds and complex structures.
  • Ability to analyze surfaces heated up to 500 °C (optional).
  • The proximity of the infrared sample sensor to the measuring window provides an easy analysis of small objects (wire chips, etc.).
  • Specialized professional Linux-based software provides reliable and fast operation without failures and freezes.

SCOPE OF APPLICATION:

  • Incoming inspection of metals
  • Control of precious metals
  • Scrap sorting
  • Mass analysis of rocks and ores
  • Express determination of the composition of ore dressing products
  • Determination of rare earth elements
  • Analysis of impurities in metals
  • Determination of alloy grades
  • Detection of deviations in processes by the composition of intermediate product

Industries Served

  • Jewelry Industry
  • Customs & Border Control
  • Metallurgy
  • Criminological Examination
  • Geology

Specifications

  • Features

  • Value

  • Chemical elements atomic numbers range:

  • Z=11(Na)…96(Cm)

  • Relative average square deviation of the output signal on the K-se ries Fe lines*

  • not over 2%

  • Sensitivity on K-series Fe lines*

  • at least 200 pulse/(c·mkA·%)

  • Measuring range of elements mass fraction **

  • 0.001 to 100 %

  • Limits of permissible relative measurement error of elements mass fraction** in the measurement sub-ranges:

  • - 0.001% to 0.1% incl.

  • ± 25 %

  • - over 0.1% to 1% incl.

  • ± 20 %

  • - over 1% to 10% incl.

  • ± 5 %

  • - over 10% to 100% incl.

  • ± 3 %

  • Coating thickness measuring range***

  • 2 to 15 microns

  • Limits of permissible relative measurement error of coating thickness***, in the measurement sub-ranges:
    - 2 to 15 microns incl.

  • ±15 %

  • Range of coating thickness readings

  • 0.001 to 110 microns

  • Operating mode establishment time

  • no more than 45 sec

  • Measurement time (selected by the operator depending on the type of sample or the analyzed area)

  • 3 to 240 sec

  • Continuous battery life with a standard battery pack

  • at least 12 h

  • Equivalent dose rate under normal operating conditions of the analyzer,
    at any accessible point at a distance of 0.1 meters from the surface of the analyzer

  • not more than 1 mcSv/h

  • Operation conditions:

  • - air temperature

  • -35 to +50° C

  • - relative humidity

  • not more than 98 %

  • Protection class according

  • IP65

  • Overall dimensions (LxWxH)

  • 227x93x270 mm

  • Weight

  • not more than 2 kg

  • The presence of a safety system in the device

  • - Optical sample presence sensor;
    - Software control of radiation intensity

  • Detector type

  • Silicon drift SDD

  • Detector resolution

  • 127 eV

  • Telecommunications Interfaces

  • BlueTooth, USB, Wi-Fi (optional)

  • Protection of the measuring window

  • A brass plate that does not require consumables

  • Case material

  • Impact-resistant plastic

  • Format of providing measurement results

  • Creation of reports based on the user’s template in PDF, RTF,

    CSV formats
